Installation of ground screws can be made in different ways depending on the number, the size of the screws and the kind of terrain on which the poles has to be fixed.
MANUAL PILING
For few screws, less than 200 cm. long, in good soil condition piling can be done manually, below a couple of images and a short video concerning the manual installation of short screws.
MECHANICAL PILING
In case of high number and bigger size screws it is possible to use simple mechanical devices such as a mini excavator or a mini loader with an hydraulic auger on which you can fix a simple adapter for the screws.
Below some images and a short video concerning the mechanical installation of flanged poles.

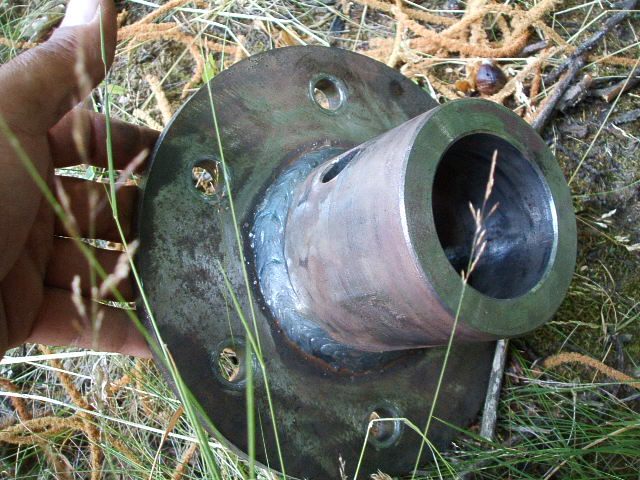

Auger adapter for screws piling.

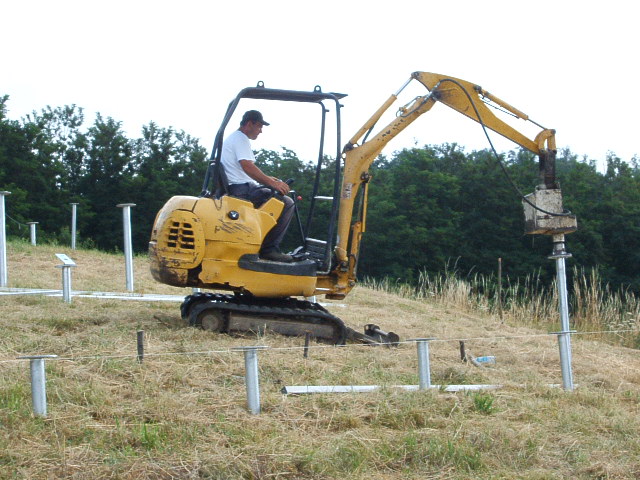

Mini excavator with auger and adapter.
Installation of ground screws for tree ensurance
BIG NUMBERS PILING

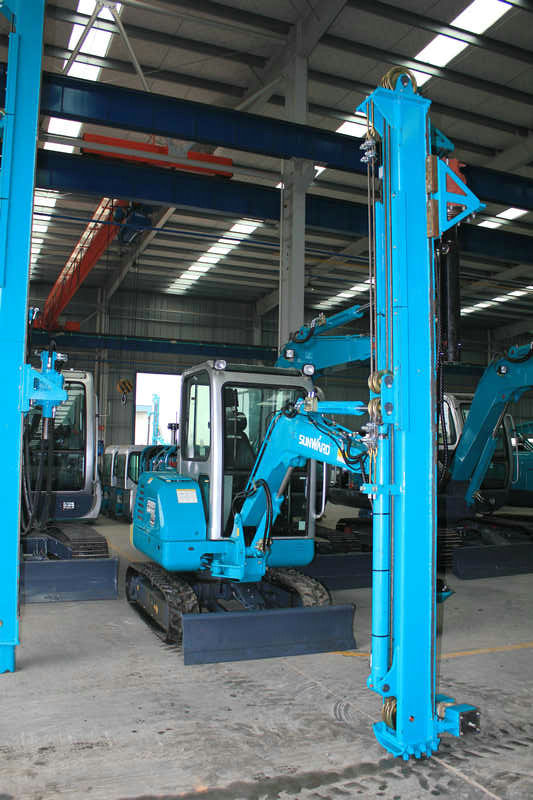

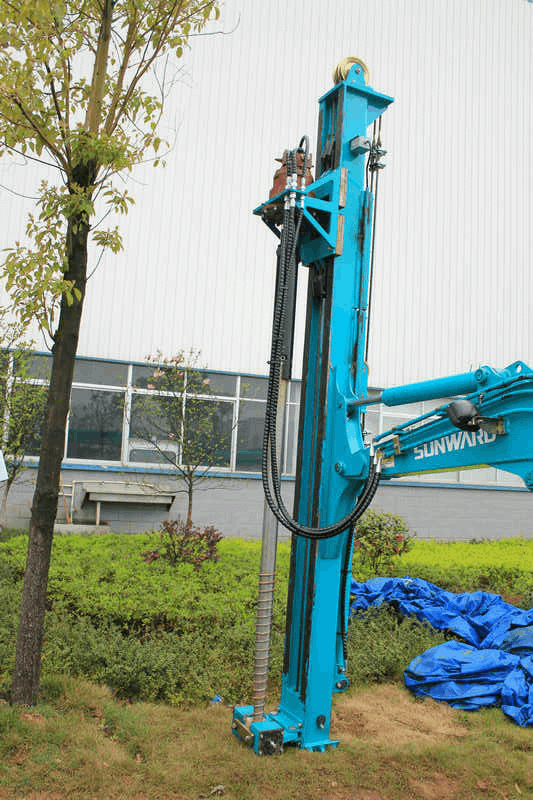

For many screws and for precise piling it is possible to use a special piling rotor, it is a simple machinery that can be adapted to any mini excavator, practical to install and to use for big numbers.

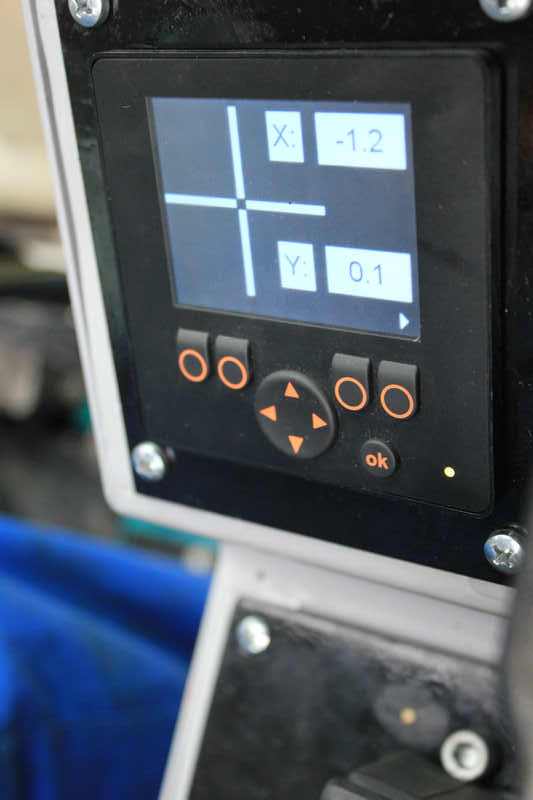

Verticality control system inside the cabin
